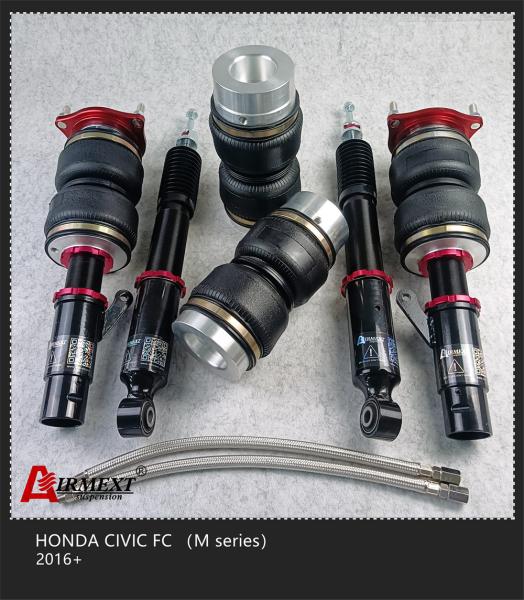

For Honda Civic FC with camber plate 2016+ air strut kit air
suspension/air spring/shock absorber
MODEL FITMENT
--- Honda Civic FC with camber plate 2016+
|
| PART NO. | MODEL | CODE | YEAR | ★ |
| HO02-05-A1 | Civic SOHC (Rr Eye) | EG | 91~95 | |
| HO02-05-A2 | Civic DOHC (Rr Eye) | EG | 91~95 | |
| HO02-05-B1 | Civic SOHC (Rr Fork) | EG | 91~95 | |
| HO02-05-B2 | Civic DOHC (Rr Fork) | EG | 91~95 | |
| HO02-06-A1 | Civic SOHC | EK | 95~00 | |
| HO02-06-A2 | Civic DOHC | EK | 95~00 | |
| HO02-07-A1 | Civic | ES/EM | 00~05 | ★ |
| HO02-07-B1 | Civic Type R | EP3 | 01~06 | ★ |
| HO02-08-A1 | Civic | FD1 | 05~12 | |
| HO02-08-A2 | Civic (Rr Integrated) | FD1 | 05~12 | |
| HO02-08-B1 | Civic Type R | FD2 | 06~11 | |
| HO02-08-B2 | Civic Type R (Rr Integrated) | FD2 | 06~11 | |
| HO02-08-C1 | Civic Type R | FN2 | 06~11 | |
| HO02-08-C2 | Civic Type R (Rr Integrated) | FN2 | 06~11 | |
| HO02-08-D1 | Civic Si | FA/FG | 05~10 | |
| HO02-09-A1 | Civic | FB | 11~16 | |
| HO02-09-A2 | Civic (Rr Integrated) | FB | 11~16 | |
| HO02-09-B1 | Civic Type R | FK2 | 15~17 | ★ |
| HO02-09-C1 | Civic Si | FB6/FG4 | 14~15 | |
| HO02-09-C2 | Civic Si | FB6/FG4 | 12~13 | |
| HO02-10-A1 | Civic (China Market) | FC | 15~ | |
| HO02-10-B1 | Civic (International Market) | FC | 15~ | |
| HO02-10-C1 | Civic Si | FC1/FC3 | 17~ | |
| HO02-10-D1 | Civic | FK7 | 15~ | |
| HO03-01-A1 | CR-V | RD1-3 | 95~01 | |
| HO03-02-A1 | CR-V 2WD | RD4-9 | 01~06 | ★ |
| HO03-02-A2 | CR-V 4WD | RD4-9 | 01~06 | ★ |
| HO03-03-A1 | CR-V 2WD | RE1-5/RE7 | 01~06 | |
| HO03-03-A2 | CR-V 4WD | RE1-5/ RE7 | 06~12 | |
| HO03-04-A1 | CR-V | RM1/3/4 | 11~18 | ★ |
| HO03-05-A1 | CR-V 2WD | RW1-6/RT5-6 | 16~ | |
| HO03-05-A2 | CR-V 4WD | RW1-6/RT5-6 | 16~ | |
| HO04-01-A1 | Fit/Jazz | GD | 01~08 | |
| HO04-02-A1 | Fit/Jazz | GE | 07~14 | |
| HO04-02-B1 | Fit/Jazz (Rr Integrated) | GE | 07~14 | |
| HO04-03-A1 | Fit/Jazz | GK | 13~20 | |
| HO04-03-B1 | Fit/Jazz (Rr Integrated) | GK | 13~20 | |
| HO04-03-C1 | Fit Hybrid | GP5/6 | 13~20 | |
| HO04-04-A1 | Fit/Jazz | GR/GS | 20~ | |
| HO05-03-A1 | Prelude | BA3-7 | 87~91 | |
| HO05-04-A1 | Prelude | BA8-9/BB1-4 | 91~96 | |
| HO05-05-A1 | Prelude | BB5-9 | 96~01 | |
| HO06-01-A1 | Stream | RN1-5 | 00~06 | |
| HO06-02-A1 | Stream | RN6-9 | 06~14 | |
| HO07-02-A1 | Odyssey | RA6-9 | 99~03 | |
| HO07-03-A1 | Odyssey | RB1-2 | 03~08 | |
| HO07-03-B1 | Odyssey (USA) | RL3/RL4 | 04~10 | ★ |
| HO07-04-A1 | Odyssey | RB3-4 | 08~13 | |
| HO07-05-A1 | Odyssey | RC1/RC2 | 13~ | |
| HO08-01-A1 | NSX | NA1/NA2 | 90~95 | |
| HO09-01-A1 | S2000 | AP1 | 99~03 | ★ |
| HO09-02-A1 | S2000 | AP2 | 03~09 | ★ |
| HO10-03-A1 | Integra Type R SOHC(Rr Eye) | DC1 | 93~01 | |
| HO10-03-A2 | Integra Type R DOHC(Rr Eye) | DC2 | 93~01 | |
| HO10-03-B1 | Integra Type R SOHC(Rr Fork) | DC1 | 93~01 | |
| HO10-03-B2 | Integra Type R DOHC(Rr Fork) | DC2 | 93~01 | |
| HO10-04-A1 | Integra Type R | DC5 | 01~06 | ★ |
| HO11-04-A1 | City | GD8-9 | 02~08 | |
| HO11-05-A1 | City | GM2-3 | 08~13 | |
| HO11-06-A1 | City | GM6 | 14~ | |
| HO11-06-A2 | City/Greiz (Chinese) | | 16~ | |
| HO12-01-A1 | Freed | GB3-4/GP3 | 08~16 | |
| HO12-02-A1 | Freed | GB5-8 | 16.9~ | |
| HO13-01-A1 | Jade | FR4-5 | 13~ | |
| HO14-01-A1 | CR-Z | ZF1-2 | 10~16 | |
| HO15-01-A1 | Crider | | 13~15 | |
1.This air strut pack including:
-------4 * AIRMEXT air strut ( front shocks 2pcs and rear shocks
2pcs )
-------2 * spacers + bolts
-------4 * 1/8NPT air fittings
-------4 * dampers
-------2 *spanners (wrenches)
-------2 * sway bar (optional if needed)
-------2 * Pillow ball camber plate (optional and extra charged,pls
contact with on-line service)
| Item | Air suspension |
| Car Model | Honda Civic FC with camber plate 2016+ |
| Size | Standard |
| Material | rubber, steel |
| Condition | new |
| Position | front and rear |
| Delivery time | 5-10 working days |
| Warranty | 12 months |
| MOQ | 1 pc |
| Payment term | T/T, Western union, Paypal,Alipay |
| Shipping | DHL,UPS,Fedex,EMS,by sea,etc |
| Packaging | Neutral packing |
| Our advantages | Factory directly sale, wecome to visit any time. High quality and competitive price. |
2. Features:
----- 32 level adjustable damping
Which allow you to dial in your air suspension even further. Adjust the damping softer (counterclockwise) or stiffer (clockwise)
by simply inserting the included damping knob and turning it either
way.
----- Threaded and adjustable shock mounts
Adding extra adjustment to your ride height at any PSI setting you
choose is the ability to have an adjustable mount, just like
coilover kits. The benefit is being able to get the perfect ride height at
virtually any PSI you're comfortable driving.
----- 125mm drop (front and rear)
Front and rear spacer with 125mm drop (travel) that raises and
lowers your car body randomly, works with AIRMEXT G5 air management
to be 3-level memorized height adjustable.
----- High Pressure Double Bellows Progressive Rate Spring
Designed and engineered to match your vehicle, twin bellows type
slim bags are available depending on your vehicle's OEM suspension
type. Air pressure directly correlates to how stiff or soft your car is. Higher PSI = stiffer ride. Low PSI = smoother ride. Every car is different and it may take some time to dial in your
preferred settings.
---- High Performance AIRMEXT Shock Absorbers
Each air strut kit comes with the same quality shocks as standard
in our coilover systems. Air shocks have a different internal valve setting to accommodate
changes in PSI.
----- 12 Month Limited Warranty
Our warranty is 12 months from the date of original purchase which
covers manufacturer defects
4. This item is just a air strut part of a complete set of air
suspension system, you need to match other accessories according to
your interest. AIRMEXT,ACCUAIR, AIRLIFT etc control system.
5. It is to adjust the height of the chassis by automatically
controlling, automatically ascending
When driving while lower when the car parking, the shock absorption
capacity can be adjusted randomly,
Significantly improves comfort.
