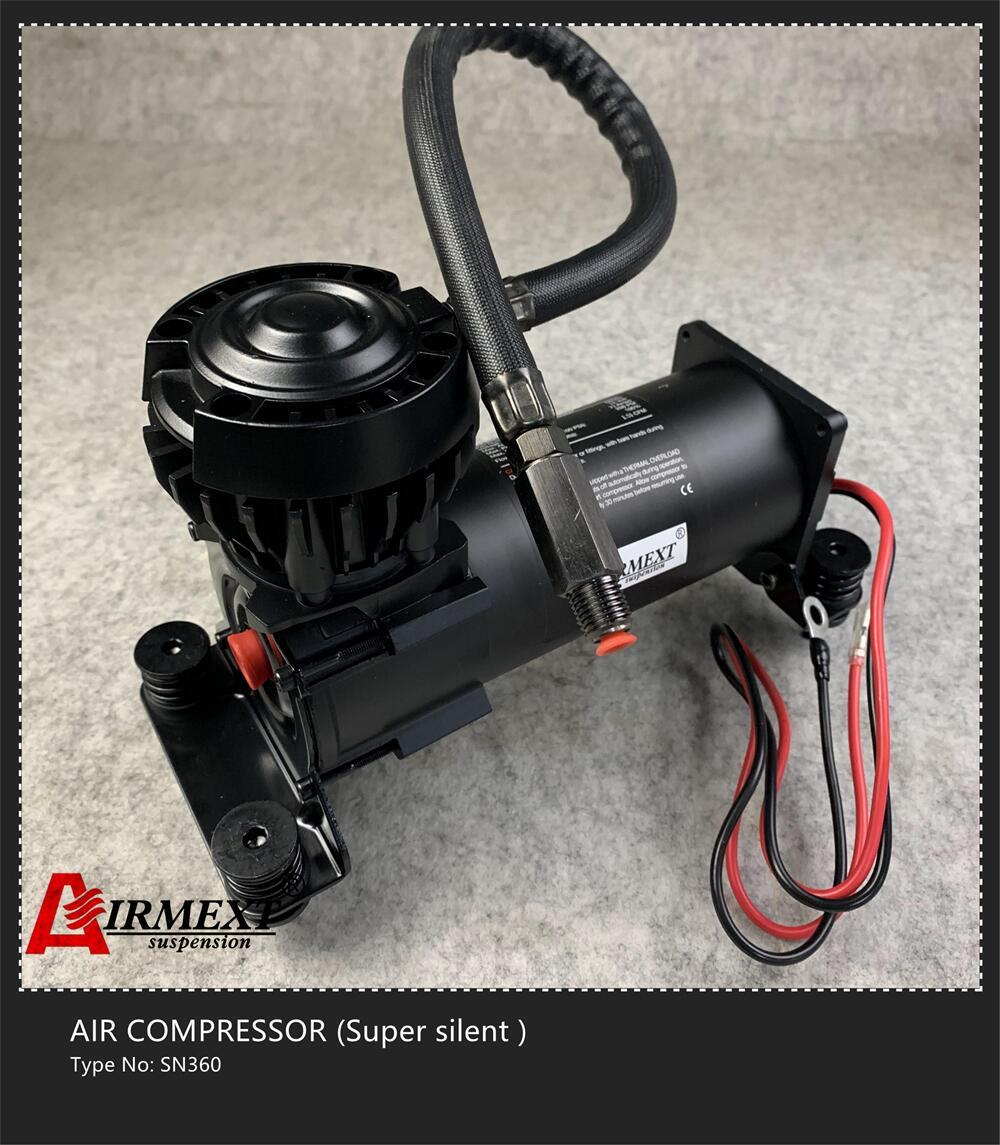

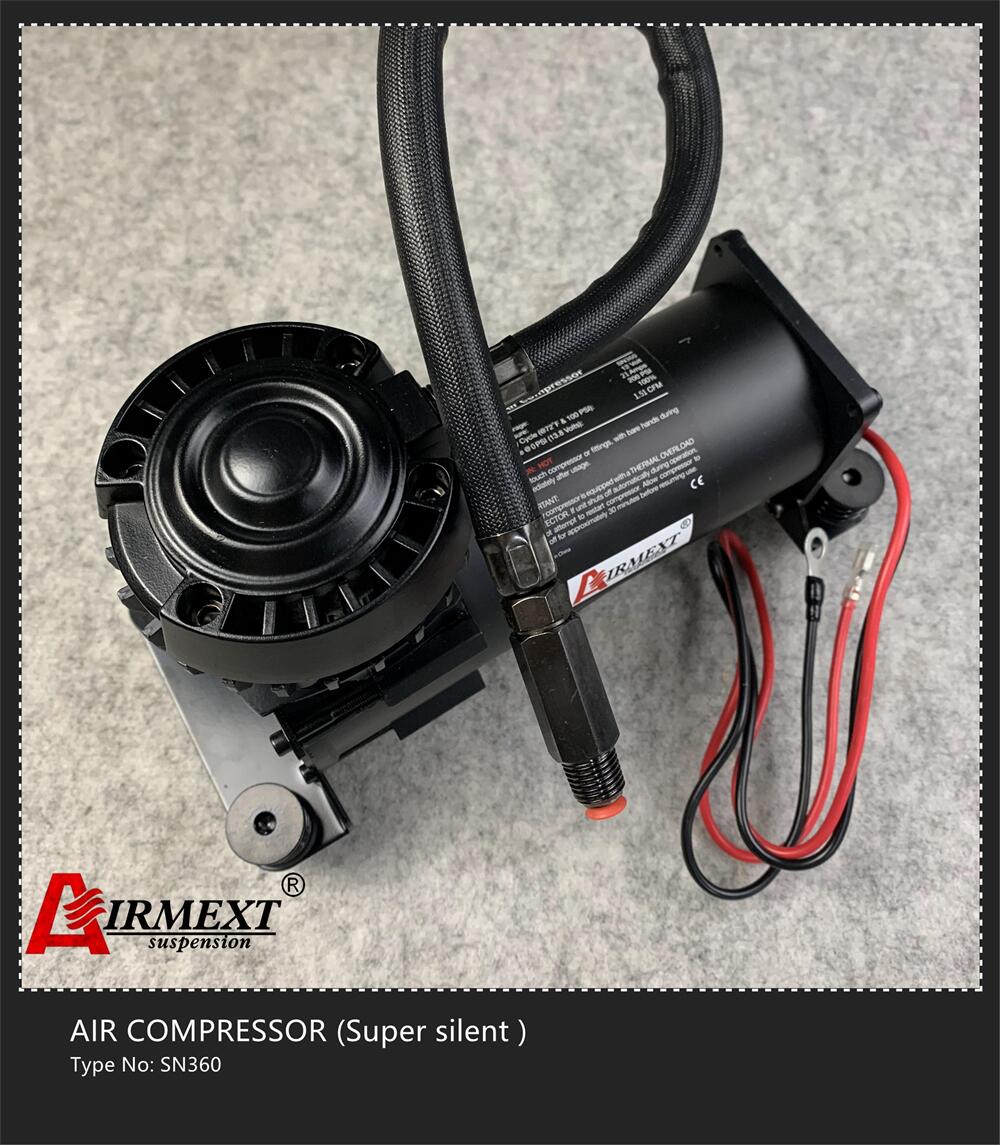

SN360 Super silent air pump air compressor
Pls note this product is sold by piece!
Brand: AIRMEXT
More detailed product installation parameters, performance
parameters, electrical parameters, environmental parameters, please
contact customer service to obtain information
Model: SN360 (SUPER SILENT)
SN360 -Air compressor
RRated voltage: DC-12V
Max. 12V Amp Draw: 21A
Motor type: Permanent Magnetic Motor
Max. Working Pressure: 200PSI
Duty Cycle:100% @100PSI &73.4℉

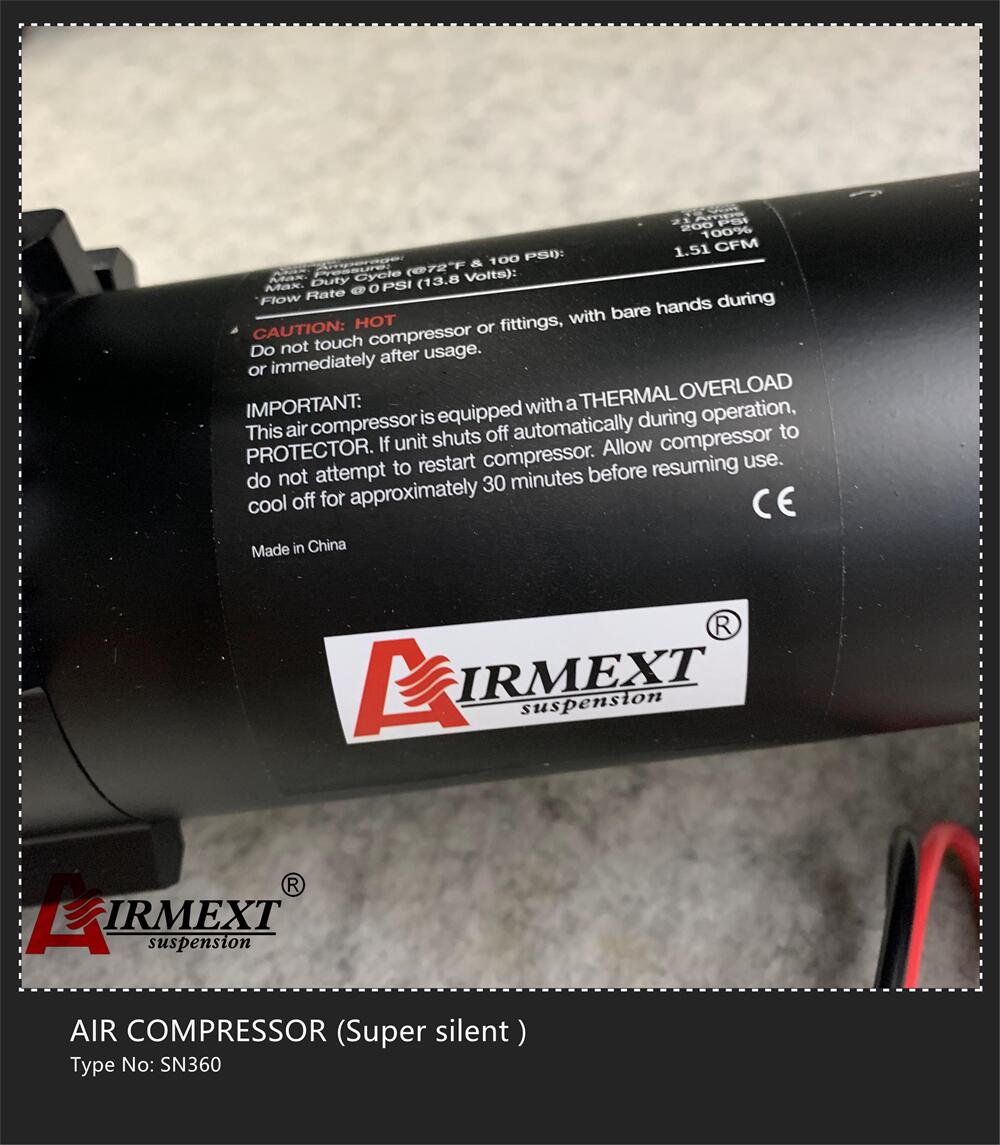

Overheating protection: Yes
Dimensions: : 12″L x 4.4″W x 7.52″H
Net Weight: 9.7 lbs.
SN 360 is a 100% duty cycle of the air compressor
High performance, durable piston rings, precision motor bearings,
work quickly and efficiently
Traffic at 0PSI pressure of (1.51CFMCFM)
Original standard; 3/8 "stainless steel package bobbin, mounting
hardware (nuts, bolts, lock washers), isolator, air filter
assembly, nylon pressure pipe, a valve interfaces with check valve
and so on
AIRMEXT is Standard setters, famous and world renowned. Products
involved in numerous aerospace, automotive, ships, high-speed
railway, machinery.
In the automotive industry, widely used in air suspension systems,
air horn, pneumatic doors, pneumatic seat, clutch, power steering
systems
ABOUT RATED WORKIGN PRESSURE:
To ensure trouble free service life of your compressor, always
operate compressor with in rated working pressure of the
compressor.
TROUBLESHOOTING GUIDE:
| PROBLEM: | POSSIBLE CAUSE(S) | CORRECTiVE ACTION |
Tank pressure drops when compressor(s) shut off | 1. Loose drain cock 2.Check valve leaking 3. Loose connections | 1. Tighten drain cock 2. Replace check valve or compressor 3. Check all connections with soap and water solution and tighten |
Compressor runs continuously and air flow lower than normal | 1.Excessive air usage 2. Loose connections 3. Worn piston ring or inlet valve. 4.Clogged air filter element | 1. Decrease air usage 2. Check all connections with soap and water solution and tighten 3. Replace compressor 4. Replace air filter element |
Compressor runs continuously causing safety valve(if equipped) to open | 1.Faulty pressure switch 2.Defective safety valve | 1. Replace pressure switch 2. Replace safety valve |
Excessive moisture in discharge | 1.Excessive water in air tank 2.High humidity | 1. Drain tank, tilt tank to drain. Drain tank more frequently 2. Move compressor to area with less humidity, or use air line filter |
| Compressor will not run | 1. No power, or power switch in OFF position 2. Blown fuse 3. Motor overheats 4. Faulty pressure switch (if hooked up to a pressure switch) | 1. Make sure compressor switch is ON 2. Disconnect compressor from power source, replace fuse. ( Refer to Specifications section for correct fuse amperage) 3. Let compressor cool off for about 30 minutes to allow t hermal overload switch to reset 4. Replace pressure switch |
Thermal overload protector cuts out repeatedly | 1. Lack of proper ventilation or ambient temperature is too high 2. Compressor valves failed | 1. Move compressor to well ventilated area, or area with lower ambient temperature 2. Replace compressor |
Excessive knocking or rattling | 1. Loose mounting bolts 2.Worn bearing on eccentric or motor shaft 3.Cylinder or piston ring is worn | 1. Tighten bolts 2. Replace bearing or piston assembly 3. Replace piston or compressor |
