    SN420 Super Silent Air Pump Air Compressor 200PSI DC 12V

    Ask Lasest Price
    Brand Name : AIRMEXT
    Model Number : SN360
    Certification : CE
    Price : USD 100~150
    Payment Terms : T/T
    Supply Ability : 500 PCS/MONTH
    Delivery Time : 1~3 WORKING DAYS
    • Product Details
    • Company Profile

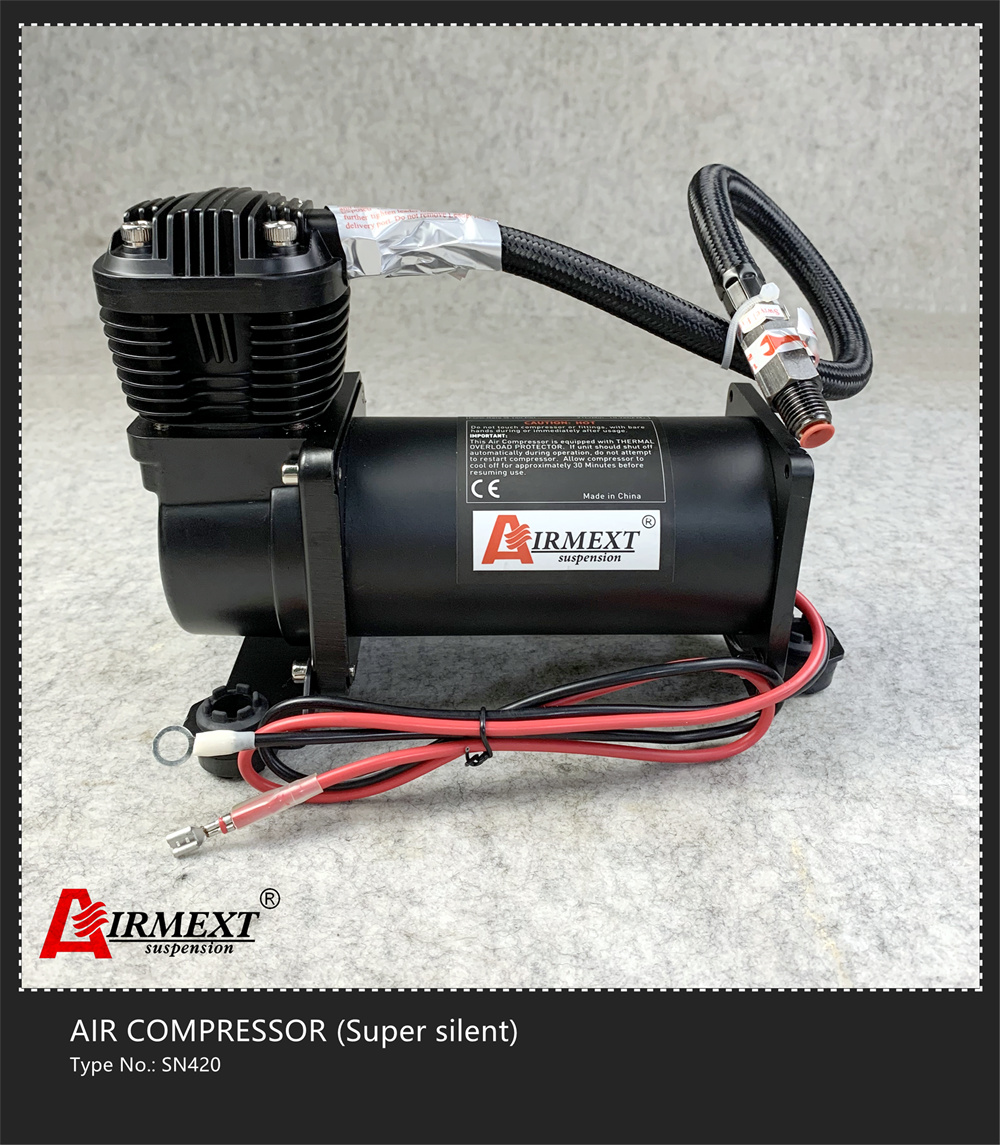

    SN420 Super Silent Air Pump Air Compressor 200PSI DC 12V

    SN420 Super silent air pump air compressor
    Pls note this product is sold by piece!
    Brand: AIRMEXT
    More detailed product installation parameters, performance parameters, electrical parameters, environmental parameters, please contact customer service to obtain information
    Model: SN420 (SUPER SILENT)
    Operating Voltage: DC-12V
    Motor type: Permanent magnet motors
    Working voltage: 200PSI
    Inflatable Flow: 1.41CFM@0PSI(1CFM=28.3185 L/MIN)
    Inflatable Flow: 0.74CFM@150PSI(1CFM=28.3185 L/MIN)
    Maximum working pressure: 200PSI (14KG / cm2)
    Maximum current: 38A
    Size (L × W × H, mm): 277x106x168
    Weight: 5KG
    SN 420 is a 100% duty cycle of the air compressor
    High performance, durable piston rings, precision motor bearings, work quickly and efficiently
    Traffic at 0PSI pressure of (1.41CFMCFM)
    Original standard; 3/8 "stainless steel package bobbin, mounting hardware (nuts, bolts, lock washers), isolator, air filter assembly, nylon pressure pipe, a valve interfaces with check valve and so on
    AIRMEXT is Standard setters, famous and world renowned. Products involved in numerous aerospace, automotive, ships, high-speed railway, machinery.
    In the automotive industry, widely used in air suspension systems, air horn, pneumatic doors, pneumatic seat, clutch, power steering systems

    TROUBLESHOOTING GUIDE:

    PROBLEM:POSSIBLE CAUSE(S)CORRECTiVE ACTION

    Tank pressure drops when

    compressor(s) shut off

    1. Loose drain cock

    2.Check valve leaking

    3. Loose connections

    1. Tighten drain cock

    2. Replace check valve or

    compressor

    3. Check all connections with

    soap and water solution

    and tighten

    Compressor runs

    continuously and air flow

    lower than normal

    1.Excessive air usage

    2. Loose connections

    3. Worn piston ring or inlet valve.

    4.Clogged air filter element

    1. Decrease air usage

    2. Check all connections with

    soap and water solution

    and tighten

    3. Replace compressor

    4. Replace air filter element

    Compressor runs

    continuously causing

    safety valve(if equipped)

    to open

    1.Faulty pressure switch

    2.Defective safety valve

    1. Replace pressure switch

    2. Replace safety valve

    Excessive moisture in

    discharge

    1.Excessive water in air tank

    2.High humidity

    1. Drain tank, tilt tank to drain.

    Drain tank more frequently

    2. Move compressor to area

    with less humidity, or use

    air line filter

    Compressor will not run

    1. No power, or power switch in

    OFF position

    2. Blown fuse

    3. Motor overheats

    4. Faulty pressure switch (if

    hooked up to a pressure switch)

    1. Make sure compressor

    switch is ON

    2. Disconnect compressor

    from power source, replace

    fuse. ( Refer to Specifications

    section for correct fuse amperage)

    3. Let compressor cool off for

    about 30 minutes to allow t

    hermal overload switch to reset

    4. Replace pressure switch

    Thermal overload

    protector cuts out

    repeatedly

    1. Lack of proper ventilation or

    ambient temperature is too high

    2. Compressor valves failed

    1. Move compressor to well

    ventilated area, or area with

    lower ambient temperature

    2. Replace compressor

    Excessive knocking

    or rattling

    1. Loose mounting bolts

    2.Worn bearing on eccentric or

    motor shaft

    3.Cylinder or piston ring is worn

    1. Tighten bolts

    2. Replace bearing or

    piston assembly

    3. Replace piston or compressor


    WIRE GUAGE GUIDE 12-VOLT
