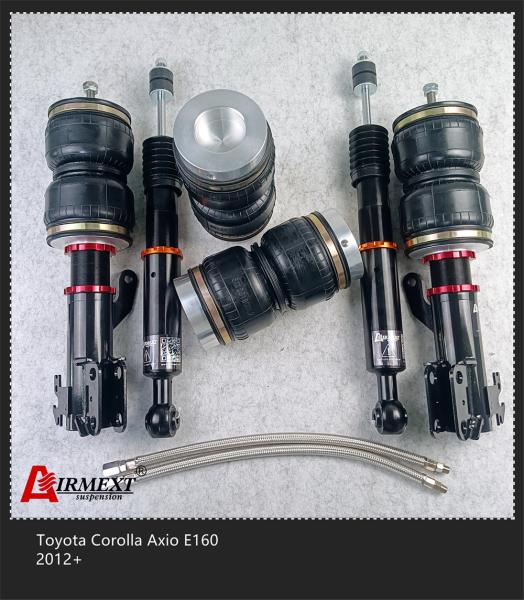

For TOYOTA COROLLA AXIO E160 2012+ air strut kit air suspension

MODEL FITMENT

--- TOYOTA COROLLA AXIO E160 2012+

2.This air strut pack including:

-------4 * AIRMEXT air strut (2 for front shocks and 2 for rear shocks)

-------2 * spacers + bolts

-------4 * 1/8NPT air fittings

-------4 * dampers

-------2 *spanners (wrenches)

-------2 * sway bar (optional if needed)

-------2 * Pillow ball camber plate (optional and extra charged,pls contact with on-line service)

3. Features:

----- 32 - level adjustable damping

This allows you to dial further into the air suspension. The damping can be set to softer (counterclockwise) or harder (clockwise) simply by inserting the corresponding damping knob and turning it in either direction.

-----Thread and adjustable vibration holder

Adding further adjustment to your riding height in any PSI setting you choose is the ability to have an adjustable mount, just like the coil kit. This has the advantage of getting a perfect driving height at any PSI.

----- 125mm drop (front and back)

Front and rear air struts, 125 mm drop (stroke), lift your body randomly, with AIRMEXT G5 air management, 3 level memory height adjustment.

----- High pressure double bellows progressive speed spring

Engineered and designed to match your vehicle, slim double bellows type bags are available depending on your car's OEM suspension type. The air pressure corresponds directly to the hardness of your car. Higher PSI = harder ride. Low Err PSI = Softer ride. Every car is different and it may take some time to dial to your preferred Settings.

---- High performance AIRMEXT shock absorber

Each air strut kit has the same mass of impact, which is standard for our coil system. The air-rod shock absorber has different internal valve Settings to accommodate PSI variations.

-----12 months limited warranty
Our warranty is 12 months from the initial purchase date, including manufacturer defects

4. This product is a set of air support parts of air suspension system, other accessories can be selected according to your preference. AIRMEXT, ACCUAIR, Air Transport Control systems, etc.

5. It is through the automatic control to adjust the height of the chassis, the automatic rise,When driving and stopping, the damping capacity can be adjusted randomly.Significantly improved comfort.
