MODEL FITMENT
--- Nissan sentra B13 1990-1994
|
| PART NO. | MODEL | CODE | YEAR | ★ |
| NI01-02-A1 | March | K11 | 92~03 | |
| NI01-03-A1 | March | K12 | 02~10 | |
| NI01-04-A1 | March | K13 | 10~ | |
| NI01-04-B1 | March(Rr Integrated) | K13 | 10~ | ★ |
| NI02-01-A1 | Tiida | C11 | 04~12 | |
| NI02-02-A1 | Tiida | C12 | 11~ | |
| NI03-02-A1 | Sentra 321 | B12 | 85~90 | |
| NI03-03-A1 | Sentra 331 | B13 | 90~94 | |
| NI03-03-B1 | Sentra SE-R | B13 | 90~94 | |
| NI03-04-A1 | Sentra | B14 | 94~99 | |
| NI03-05-A1 | Sentra | B15 | 99~06 | |
| NI03-05-B1 | Sentra SE-R | B15 | 02~06 | |
| NI03-05-C1 | Sentra M1 | B15 | 03~06 | |
| NI03-07-A1 | Sentra | B17 | 12~20 | |
| NI03-08-A1 | Sentra | B18 | 19~ | |
| NI04-01-A1 | Cefiro | A31 | 88~94 | |
| NI04-02-A1 | Cefiro | A32 | 94~98 | |
| NI04-03-A1 | Cefiro | A33 | 98~04 | |
| NI04-04-A1 | Cefiro (Taiwan) | A34 | 03~08 | |
| NI05-01-A1 | Teana | J31 | 03~08 | |
| NI05-02-A1 | Teana | J32 | 08~13 | |
| NI05-02-B1 | Teana | J32 | 08~19 | |
| NI05-03-A1 | Teana | L33 | 12~18 | |
| NI06-01-A1 | Altima | U13 | 92~97 | |
| NI06-05-A1 | Altima | L33 | 12~18 | |
| NI06-06-A1 | Altima | L34 | 18~ | |
| NI07-01-A1 | Murano | Z50 | 02~07 | |

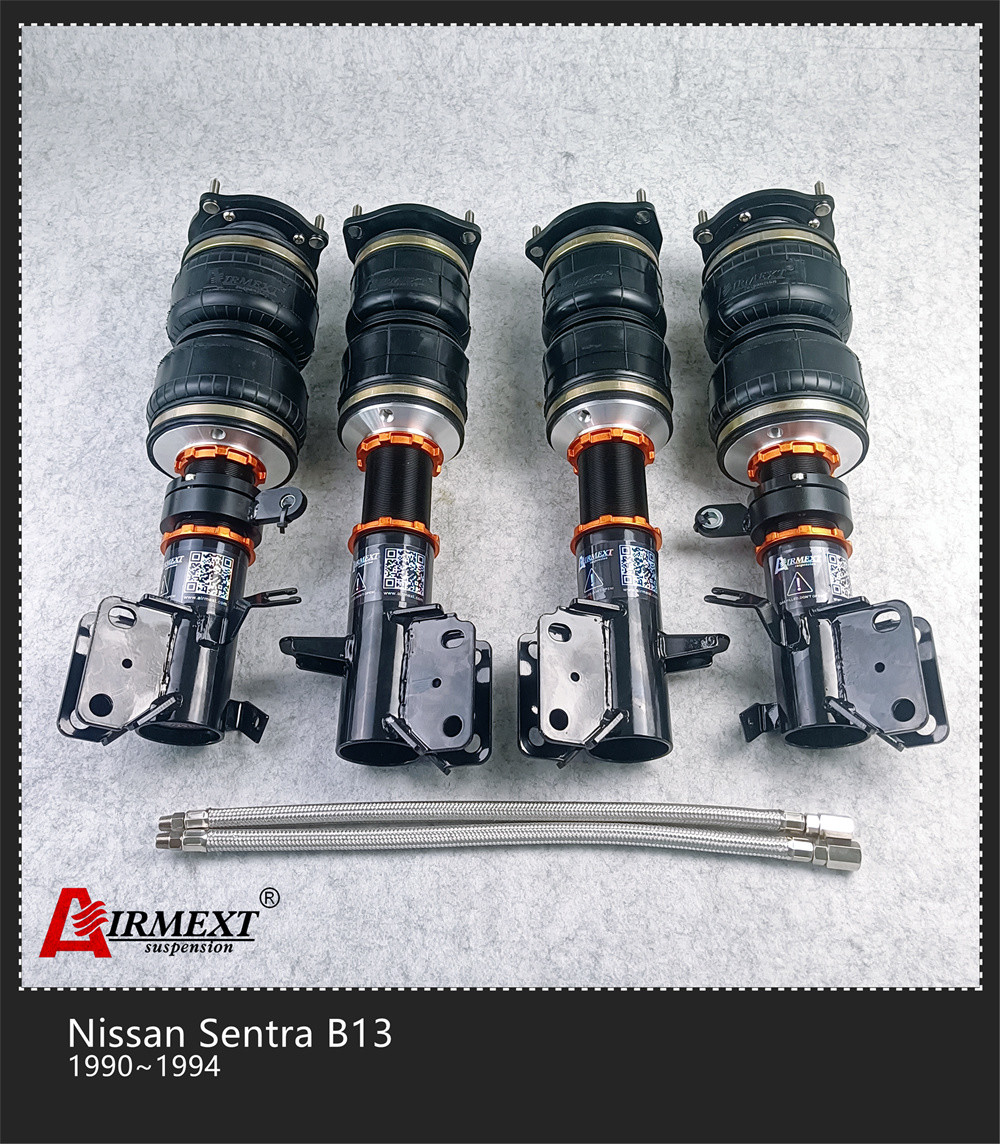

1.This air strut pack including:
-------4 * AIRMEXT air strut ( front shocks 2pcs and rear shocks
2pcs )
-------2 * spacers + bolts
-------4 * 1/8NPT air fittings
-------4 * dampers
-------2 *spanners (wrenches)
-------2 * sway bar (optional if needed)
-------2 * Pillow ball camber plate (optional and extra charged,pls
contact with on-line service)
2. Features:
----- 32 - level adjustable damping
This allows you to dial further into the air suspension. The
damping can be set to softer (counterclockwise) or harder
(clockwise) simply by inserting the corresponding damping knob and
turning it in either direction.
-----Thread and adjustable vibration holder
Adding further adjustment to your riding height in any PSI setting
you choose is the ability to have an adjustable mount, just like
the coil kit. This has the advantage of getting a perfect driving
height at any PSI.
----- 125mm drop (front and back)
Front and rear air struts, 125 mm drop (stroke), lift your body
randomly, with AIRMEXT G5 air management, 3 level memory height
adjustment.
----- High pressure double bellows progressive speed spring
Engineered and designed to match your vehicle, slim double bellows
type bags are available depending on your car's OEM suspension
type. The air pressure corresponds directly to the hardness of your
car. Higher PSI = harder ride. Low Err PSI = Softer ride. Every car
is different and it may take some time to dial to your preferred
Settings.
---- High performance AIRMEXT shock absorber
Each air strut kit has the same mass of impact, which is standard
for our coil system. The air-rod shock absorber has different
internal valve Settings to accommodate PSI variations.
-----12 months limited warranty
Our warranty is 12 months from the initial purchase date, including
manufacturer defects
Part Name | -Nissan sentra B13 1990-1994 |
Surface Treatment | -Powder Coating / Chromed |
Surface Color | -Black ,as customer requirement . |
Applications | -Nissan sentra B13 1990-1994 |
Adjustable | -Adjustable Damping, Adjustable Height |
Quality Control | -Conducted by ISO9001 |
Packing | -Outer-Standard Carton Box |
Customer's Logo Print | -Yes,Print Logo on Color box/on Shock Body both available |
Service | -OEM |
Warranty | -1 year warranty for any manufacturing defect |
Quantity: | -2 piece front + 2 pieces rear |
Adjustable height | -Yes |
Damper | -adjustable Damper |
Adjustable camber plate | -Yes |
