For VW GOLF MK7 2011-2018 air strut kit suspension shock
absorber/air bag struts/air spring
MODEL FITMENT
--- VW GOLF MK7 2011-2018
| PART NO. | MODEL | CODE | YEAR | ★ |
| VW01-01-A1 | Golf MK1 | 17 | 74~83 | |
| VW01-02-A1 | Golf Mk2 | 19E/1G | 83~92 | |
| VW01-03-A1 | Golf Mk3 | 1H | 91~00 | |
| VW01-03-B1 | Golf Mk3 Cabrio | 1E | 94~02 | |
| VW01-04-A1 | Golf Mk4 2WD | 1J | 97~04 | |
| VW01-04-B1 | Golf Mk4 4WD | 1J | 97~04 | |
| VW01-04-C1 | Golf Mk4 Variant | 1J | 99~06 | |
| VW01-05-A1 | Golf Mk5 2WD(Ø50) | 1K | 03~09 | |
| VW01-05-A2 | Golf Mk5 2WD(Ø55) | 1K | 03~09 | |
| VW01-05-B1 | Golf Mk5 4WD(Ø55) | 1K | 03~09 | |
| VW01-05-C1 | Golf Mk5 Variant(Ø55) | 1K | 07~09 | |
| VW01-05-D1 | Golf Plus(Ø55) | 5M | 04~08 | |
| VW01-06-A1 | Golf Mk6 2WD(Ø50) | 5K | 08~14 | |
| VW01-06-A2 | Golf Mk6 2WD(Ø55) | 5K | 08~14 | |
| VW01-06-B1 | Golf Mk6 4WD(Ø55) | 5K | 08~14 | |
| VW01-06-C1 | Golf Mk6 Variant(Ø55) | 5K | 09~13 | |
| VW01-06-D1 | Golf Mk6 Cabrio | 5K | 11~16 | |
| VW01-06-E1 | Golf R MK6 4WD | 5K | 09~12 | |
| VW01-06-F1 | Golf Mk6 GTI | 5K | 08~14 | |
| VW01-07-A1 | Golf Mk7 2WD(Ø50) | 5G | 12~ | |
| VW01-07-A2 | Golf Mk7 2WD(Ø55) | 5G | 12~ | |
| VW01-07-A3 | Golf Mk7.5(Ø50) | 5G | 17~ | |
| VW01-07-A4 | Golf Mk7.5(Ø55) | 5G | 17~ | |
| VW01-07-B1 | Golf Mk7 4WD(Ø55) | 5G | 12~ | |
| VW01-07-C1 | Golf Mk7 Variant(Ø55) | 5G | 13~ | |
| VW01-07-C2 | Golf Mk7 Variant(Ø50) | 5G | 13~ | |
| VW01-07-D1 | Golf R Mk7 4WD | 5G | 12~19 | |
| VW01-07-E1 | Golf Mk7 2WD(Rr Inverted)(Ø50) | 5G | 12~ | |
| VW01-07-E2 | Golf Mk7 2WD(Rr Inverted)(Ø55) | 5G | 12~ | |

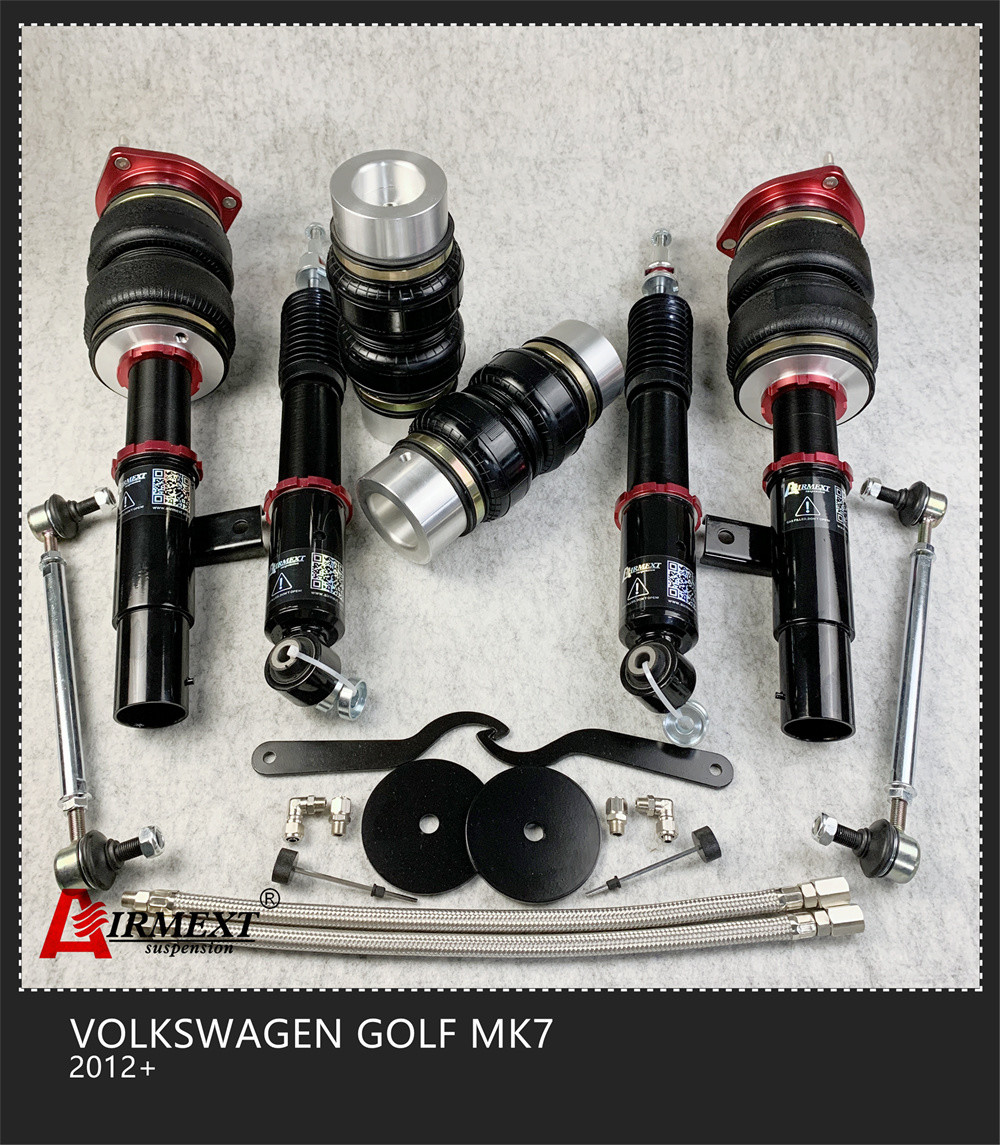

1.This air strut pack including:
-------4 * AIRMEXT air strut ( front shocks 2pcs and rear shocks
2pcs )
-------2 * spacers + bolts
-------4 * 1/8NPT air fittings
-------4 * dampers
-------2 *spanners (wrenches)
-------2 * sway bar (optional if needed)
-------2 * Pillow ball camber plate (optional and extra charged,pls
contact with on-line service)
Product Name | shock absorber |
Car Model | For VW GOLF MK7 |
Brand | AIRMEXT |
Color | black |
Certificate | ISO9001 |
MOQ | 1pc |
Quality | 100% tested |
Packing | By original or customer's requirement |
Quality | 100% tested |
2. Features:
----- 32 level adjustable damping
Which allow you to dial in your air suspension even further. Adjust the damping softer (counterclockwise) or stiffer (clockwise)
by simply inserting the included damping knob and turning it either
way.
----- Threaded and adjustable shock mounts
Adding extra adjustment to your ride height at any PSI setting you
choose is the ability to have an adjustable mount, just like
coilover kits. The benefit is being able to get the perfect ride height at
virtually any PSI you're comfortable driving.
----- 125mm drop (front and rear)
Front and rear spacer with 125mm drop (travel) that raises and
lowers your car body randomly, works with AIRMEXT G5 air management
to be 3-level memorized height adjustable.
----- High Pressure Double Bellows Progressive Rate Spring
Designed and engineered to match your vehicle, twin bellows type
slim bags are available depending on your vehicle's OEM suspension
type. Air pressure directly correlates to how stiff or soft your car is. Higher PSI = stiffer ride. Low PSI = smoother ride. Every car is different and it may take some time to dial in your
preferred settings.
---- High Performance AIRMEXT Shock Absorbers
Each air strut kit comes with the same quality shocks as standard
in our coilover systems. Air shocks have a different internal valve setting to accommodate
changes in PSI.
----- 12 Month Limited Warranty
Our warranty is 12 months from the date of original purchase which
covers manufacturer defects
