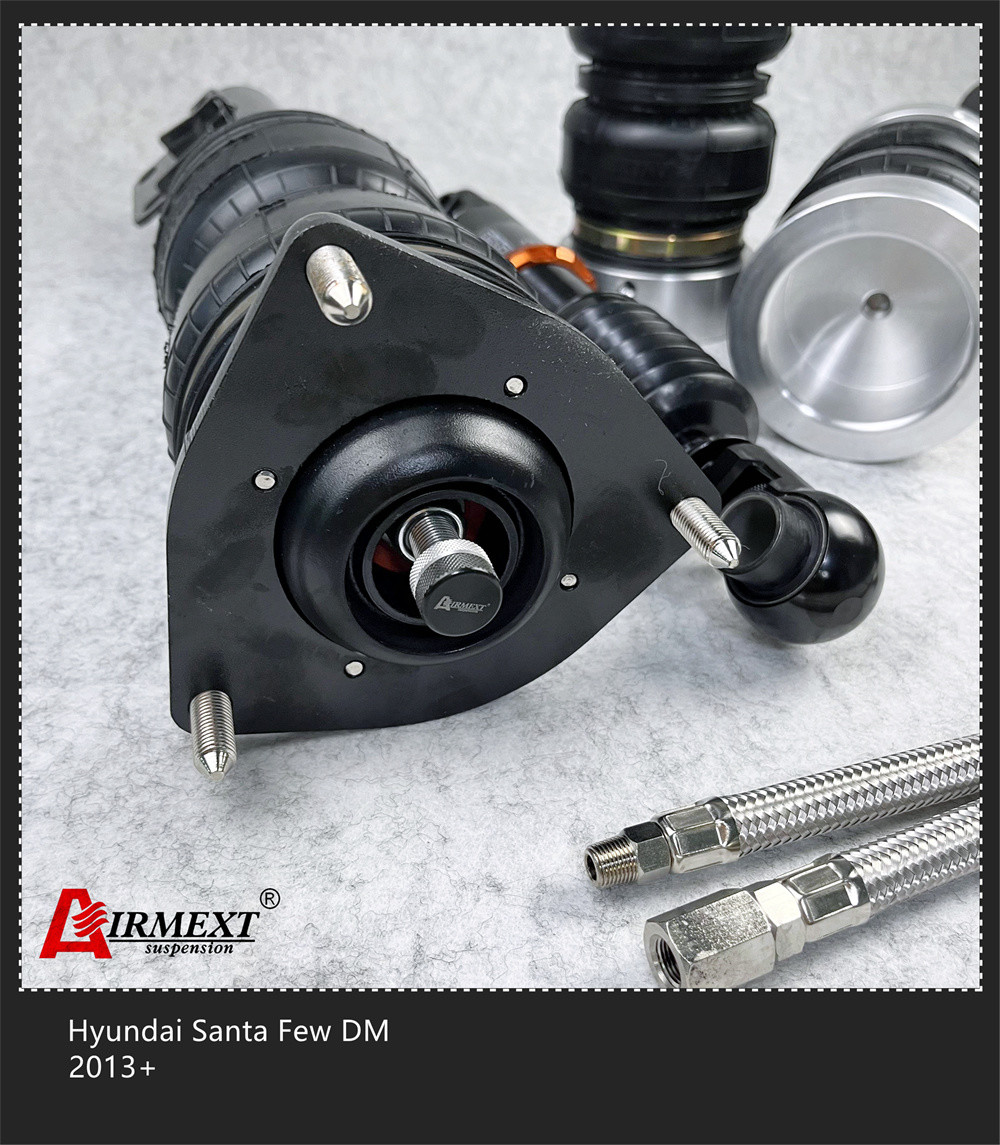

For Hyundai Santa Few DM 2013+ air strut kit air suspension/shock
absorber/air spring
MODEL FITMENT
--- Hyundai Santa Few DM 2013+
|
| PART NO. | MODEL | CODE | YEAR | ★ |
| HY01-02-A1 | Elantra II | J2/RD | 95~00 | |
| HY01-03-A1 | Elantra III | XD | 00~06 | |
| HY01-04-A1 | Elantra IV | HD | 06~10 | |
| HY01-04-B1 | Elantra Yuedong | | 06~ | |
| HY01-05-A1 | Elantra V (Chinese Market) | MD/UD | 11~15 | |
| HY01-05-A2 | Elantra V (Taiwanese Market) | MD/UD | 11~16 | |
| HY01-06-A1 | Elantra VI | AD | 15~ | |
| HY01-06-B1 | Elantra Sport | AD | 17~ | |
| HY02-01-A1 | i10 | PA | 07~13 | |
| HY03-02-A1 | i30 | GD | 12~16 | |
| HY03-03-A1 | i30 | PD | 16~ | |
| HY04-01-A1 | Getz | TB | 04~09 | |
| HY05-02-A1 | Accent | LC | 99~05 | |
| HY05-04-B1 | Verna | RB | 10~ | |
| HY06-01-A1 | Tucson | JM | 05~10 | |
| HY06-02-A1 | Tucson(ix35) 2WD | LM | 09~15 | |
| HY06-02-A2 | Tucson(ix35) 4WD | LM | 09~15 | |
| HY06-02-B1 | Tucson(ix35) (Chinese Market) | LM | 09~15 | |
| HY06-03-A1 | Tucson | TL | 15~ | |
| HY07-02-A1 | Santa Fe | CM | 07~12 | ★ |
| HY07-03-A1 | Santa Fe | DM | 13~ | ★ |
| HY08-01-A1 | Coupe/Tiburon | RD/RD2 | 96~01 | |
| HY08-02-A1 | Tiburon/Coupe | GK | 01~08 | |
| HY09-04-A1 | Sonata | EF | 99~05 | |
| HY09-05-A1 | Sonata | NF | 04~10 | |
| HY09-06-A1 | Sonata/i45 | YF | 09~14 | |
| HY09-07-A1 | Sonata | LF | 14~ | |
| HY10-01-A1 | Equus | LZ | 99~08 | |
| HY11-01-A1 | Genesis Coupe 4cyl | BK | 08~10 | |
| HY11-01-A2 | Genesis Coupe 6cyl | BK | 08~10 | |
| HY11-01-B1 | Genesis Coupe | BK | 11~ | |
| HY12-01-A1 | Matrix | FC | 01~07 | |
| HY13-01-A1 | Veloster | FS | 11~17 | |
| HY13-02-A1 | Veloster | JS | 18~ | |
| HY14-01-A1 | Mistra | | 14~ | |
| HY15-01-A1 | La Festa | | 18~ | |
| HY16-01-A1 | ix25 | GS | 14~19 | |
| HY17-01-A1 | Ioniq | AE | 16~ | |
| HY19-05-A1 | Grandeeur | HG | 11~16 | |
| HY20-01-A2 | i20 | GB | 14~20 |
1.This air strut pack including:
-------4 * AIRMEXT air strut ( front shocks 2pcs and rear shocks
2pcs )
-------2 * spacers + bolts
-------4 * 1/8NPT air fittings
-------4 * dampers
-------2 *spanners (wrenches)
-------2 * sway bar (optional if needed)
-------2 * Pillow ball camber plate (optional and extra charged,pls
contact with on-line service)
2. Features:
----- 32 level adjustable damping
Which allow you to dial in your air suspension even further. Adjust the damping softer (counterclockwise) or stiffer (clockwise)
by simply inserting the included damping knob and turning it either
way.
----- Threaded and adjustable shock mounts
Adding extra adjustment to your ride height at any PSI setting you
choose is the ability to have an adjustable mount, just like
coilover kits. The benefit is being able to get the perfect ride height at
virtually any PSI you're comfortable driving.
----- 125mm drop (front and rear)
Front and rear spacer with 125mm drop (travel) that raises and
lowers your car body randomly, works with AIRMEXT G5 air management
to be 3-level memorized height adjustable.
----- High Pressure Double Bellows Progressive Rate Spring
Designed and engineered to match your vehicle, twin bellows type
slim bags are available depending on your vehicle's OEM suspension
type. Air pressure directly correlates to how stiff or soft your car is. Higher PSI = stiffer ride. Low PSI = smoother ride. Every car is different and it may take some time to dial in your
preferred settings.
---- High Performance AIRMEXT Shock Absorbers
Each air strut kit comes with the same quality shocks as standard
in our coilover systems. Air shocks have a different internal valve setting to accommodate
changes in PSI.
----- 12 Month Limited Warranty
Our warranty is 12 months from the date of original purchase which
covers manufacturer defects
4. This item is just a air strut part of a complete set of air
suspension system, you need to match other accessories according to
your interest. AIRMEXT,ACCUAIR, AIRLIFT etc control system.
5. It is to adjust the height of the chassis by automatically
controlling, automatically ascending
When driving while lower when the car parking, the shock absorption
capacity can be adjusted randomly,
Significantly improves comfort.
Type | Air suspension | Brand | AIRMEXT |
Application | For Hyundai Santa Few DM 2013+ | Package | Carton box |
Position | Front and rear | Warranty | 12 Months |
Size | Standard | OEM Service | OEM factory |
Delivery time | 5-10 working days | Place of origin | China |
